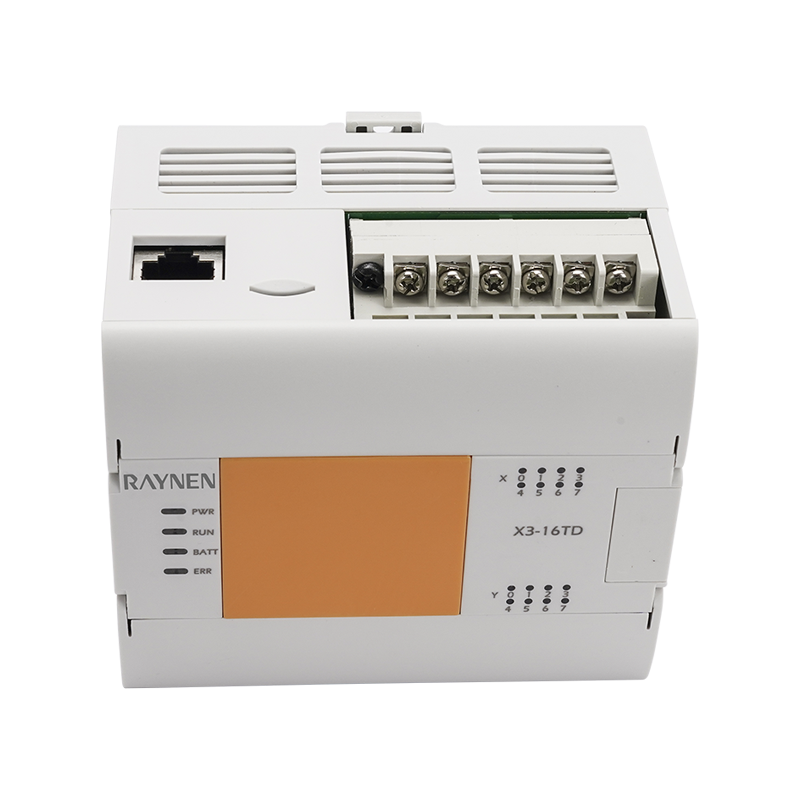

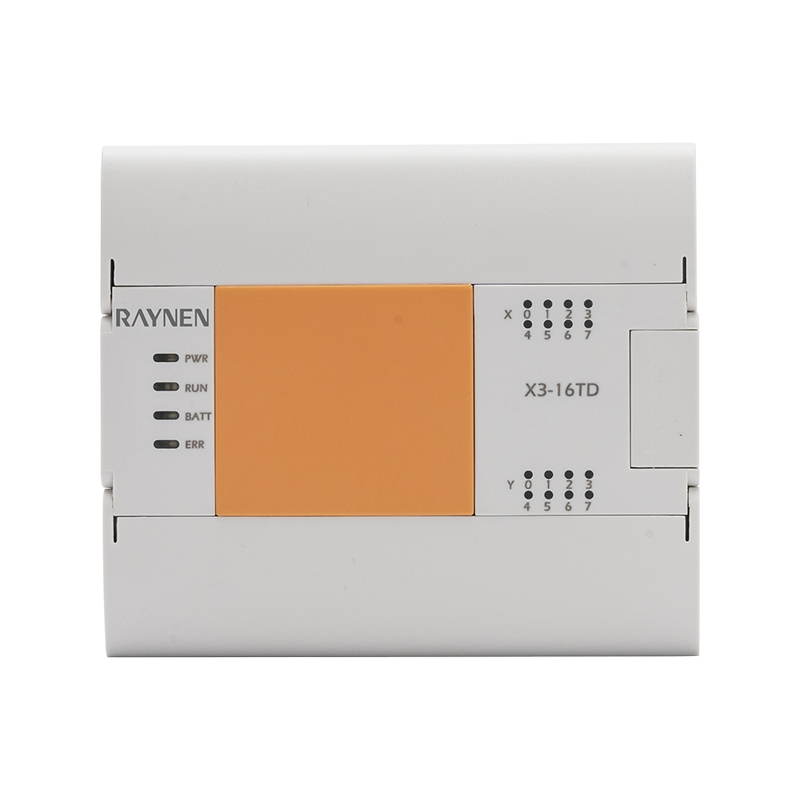

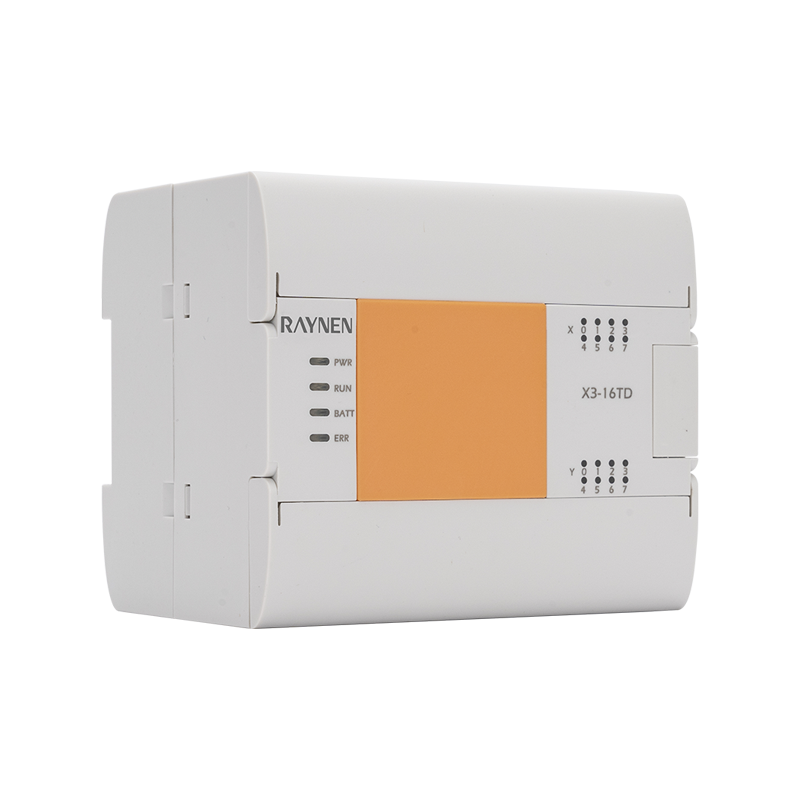

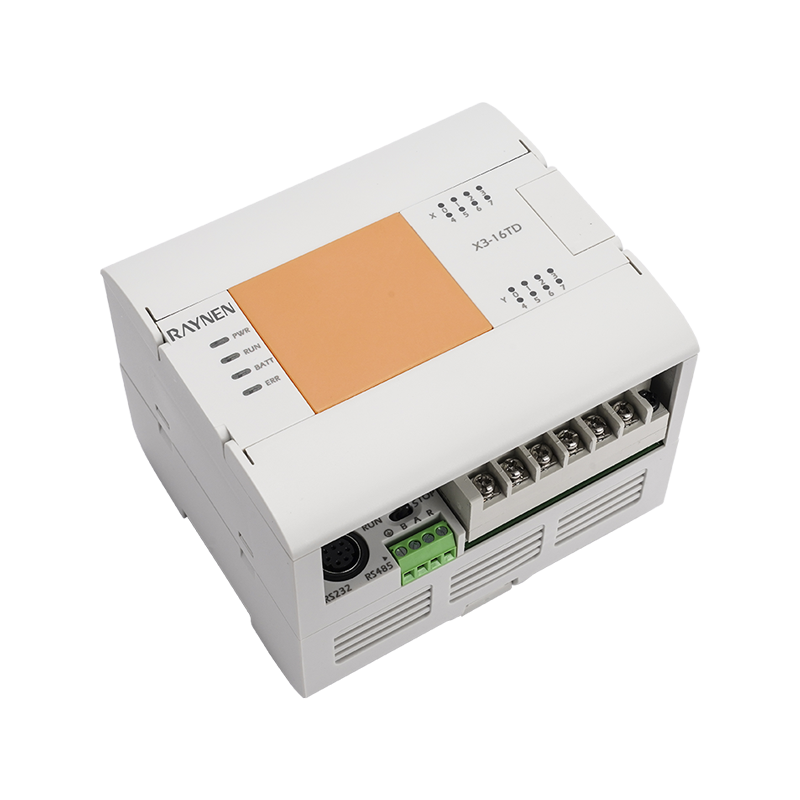

สรุปผลิตภัณฑ์
| | • ด้วยเอาต์พุตพัลส์ความเร็วสูง 2-6 แกน การนับความเร็วสูง การแก้ไขเชิงเส้นและการแก้ไขส่วนโค้ง และฟังก์ชันควบคุมการเคลื่อนไหวอื่นๆ • นาฬิกาเรียลไทม์ ข้อมูลพลังงานบันทึกอย่างถาวร • สามารถขยายได้สูงสุด 7 โมดูล |
ข้อได้เปรียบ
| | | | |
| อินเทอร์เฟซ | อินพุต/เอาต์พุต | การ์ดขยาย | บีดีบอร์ด |
| พอร์ตเครือข่ายแบบรวม RS232/485 | เคาน์เตอร์ความเร็วสูง 3-8 ช่อง พัลส์ความเร็วสูง 2-6 แกน 200K | ขยายโมดูล Max 7 | รองรับบอร์ด 1BD |
ศัพท์เฉพาะรุ่น
ขนาดผลิตภัณฑ์ (หน่วย: มม.)
| |
|
Parameter
| Item | Power Specifications | ||||
| X3E-16TD | X3E-24TD | X3E-32TD | X3E-40TD | X3E-60TD | |
| Power consumption | 10W | 12W | 12W | 13W | 14W |
| Power Voltage | DC24V | ||||
| Voltage range | DC 20.4~28.8V | ||||
| Allow instantaneous power outage time | For transient power outages below 5ms, the operation will continue | ||||
| Power fuse | 60V 2A | ||||
| Impulse current | 12A, 0.5ms below/28.8V DC | ||||
| DC24V given power | 300mA below | ||||
| DC5V build-in power | 800mA below | ||||
| Item | Power Specifications | |||||
| X3E-16TD | X3E-24TD | X3E-32TD | X3E-40TD | X3E-60TD | ||
| Input number | 8 | 14 | 16 | 24 | 36 | |
| High-speed number | Single phase 200KHz [3 pcs] AB phase 100KHz[3 pcs] | Single phase 200KHz[4 pcs], AB phase 100KHz[4 pcs] | Single phase 200KHz [8 pcs] AB phase 100KHz[4 pcs] | |||
| Input type | Sink type/source type | |||||
| Input signal voltage | DC source type: DC20.4V~28.8V | |||||
| Input impedance | X0-X5 | 3.3K | ||||
| X6-X7 | 5.6K | 3.3K | ||||
| X10 above | - | 5.6K | ||||
| On input inductance current | X0-X5 | 5mA above | ||||
| X6-X7 | 4mA | 5mA above | ||||
| X10 above | - | 4mA above | ||||
| OFF Input inductance current | 1mA above | |||||
| Input response time | ＜4.5ms | |||||
| Input signal form | No voltage contact input | |||||
| Sink input: NPN open-collector transistor | ||||||
| Source input: PNP open-collector transistor | ||||||
| Input loop isolation | Optocoupler isolation | |||||
| Display of input actions | The LED on the panel lights up when the optocoupler is driven | |||||
| Item | Power Specifications | |||||
| X3E-16TD | X3E-24TD | X3E-32TD | X3E-40TD | X3E-60TD | ||
| Output number | 8 | 10 | 16 | 16 | 24 | |
| Pulse frequency (Max) | Single-ended 2 axis 200K | Single-ended 4 axis 200K | Single-ended 6 axis 200K | |||
| Output type | Transistor/drain output | |||||
| External power supply | DC5~30V | |||||
| Max load | Resistive load | 0.5A/way | ||||
| Inductive load | 12W/DC24V | |||||
| Lamp load | 5W/DC24V | |||||
| Mid load | 5mA (DC5~24V) | |||||
| Response time | OFF→ON | High speed: 5μs below/10mA above (DC5 ~24V) | ||||
| Common: 0.2ms below/200mAabove (DC24V) | ||||||
| ON→OFF | High speed: 5μs below/10mA above (DC5 ~24V) | |||||
| Common: 0.2ms below/200mAabove(DC24V) | ||||||
| Loop isolation | Optocoupler isolation | |||||
| Display of output actions | The LED on the panel lights up when the optocoupler is driven | |||||
Software component resources
| Item | Performance | |
| Input relay X | 256 point | X0~X377 |
| Output relay Y | 256 point | Y0~Y377 |
| Auxiliary relay M | 7680 point | M0~Latch start (Set the power off non-hold area) |
| Latch start~latch end (Set power hold area, Max M1023) | ||
| Latch End ~M7679 (Fixed power hold area) | ||
| Special auxiliary relay SM | 512 point | SM8000~SM8511 |
| Status relay S | 4096 point | S0~S4095 |
| timer T | 200 point | T0~T199 (100ms Time base) |
| T192~T199 (Subroutine specialization ) | ||
| 46 point | T200~T245(10ms time base) | |
| 4 point | T246~T249(1ms Cumulative type) | |
| 6 point | T250~T255(100ms Cumulative type) | |
| 256 point | T256~T511(1ms time base) | |
| Counter 16 bit | 200 point | C0~C199 |
| Counter 32 bit | 56 point | C200~C234 |
| High Speed counter | - | C235~C255 |
| Data register D | 8000 point | D0~D7999 |
| Special data register SD | 512 point | SD8000~SD8511 |
| Index register | 16 point | V0~V7, Z0~Z7 |
| Expansion register | 32768 point | R0~R32767 |
| Pointer | 4096 point | P0~P4095 |
| Interrupted | 6 point | I00*~I50* Input interrupt |
| 3 point | I6**~I8** Timing interrupt | |
| 6 point | I010~I060 High speed counter interrupt | |
| Master control with nesting | 8 point | N0~N7 |
| constant K | - | 16 bit range: -32768~ 32767, 32 bit range: -2147483648~ 2147483647 |
| constant H | - | 16 bit range: 0~FFFF, 32 bit range: 0~FFFFFFFF |
| Real number(E) | - | -3.40×10-38~ -1.17×10-38 , 1.17x10-38~3.40×1038 |
| Character string | - | The maximum length of a half-corner character framed by " " is 32 characters |
High-speed counter
| Input Distribution | Single phase single counter | AB Phase counter | AB Phase counter | ||||||||||||||||||
| C235 | C236 | C237 | C238 | C239 | C240 | C241 | C242 | C243 | C244 | C245 | C246 | C247 | C248 | C249 | C250 | C251 | C252 | C253 | C254 | C255 | |
| X0 | U/D | | | | | | | | U/D | | | U | | | U | | A | A | | | |
| X1 | | U/D | | | | | | | R | | | D | | | D | | B | B | | | |
| X2 | | | U/D | | | | | | | U/D | | | U | | R | | R | | A | | |
| X3 | | | | U/D | | | | | | R | | | D | | S | | | | B | | |
| X4 | | | | | U/D | | | | | S | | | | U | | U | | | | A | |
| X5 | | | | | | U/D | | | | | U/D | | | D | | D | | | | B | |
| X6 | | | | | | | U/D | | | | R | | | | | R | | | | | A |
| X7 | | | | | | | | U/D | | | S | | | | | S | | | | | B |
