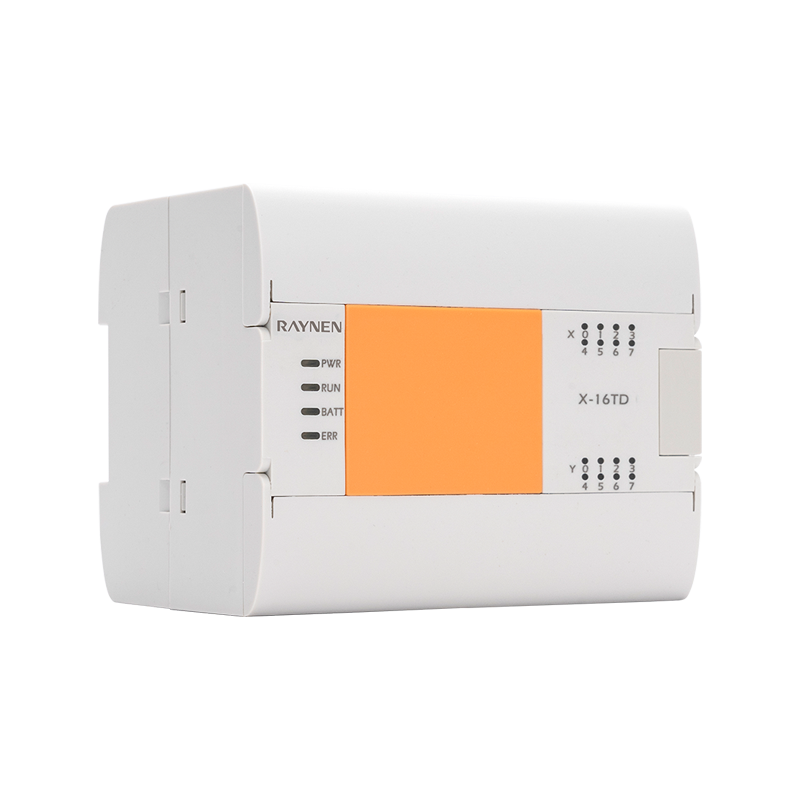

สรุปผลิตภัณฑ์
| | • ด้วยการประมวลผลข้อมูลที่มีประสิทธิภาพ การนับความเร็วสูงสามรายการ และฟังก์ชันอื่นๆ • นาฬิกาเรียลไทม์ ข้อมูลพลังงานบันทึกอย่างถาวร • รองรับบอร์ด BD หนึ่งบอร์ดและขยายได้สูงสุด 7 โมดูล |
ข้อได้เปรียบ
| | | | |
| อินเทอร์เฟซ | อินพุต/เอาต์พุต | การ์ดขยาย | บีดีบอร์ด |
| พอร์ตเครือข่ายแบบรวม RS232/485 | เครื่องนับความเร็วสูง 3 ทิศทาง | ขยายโมดูล Max 7 | รองรับบอร์ด 1BD |
ศัพท์เฉพาะรุ่น

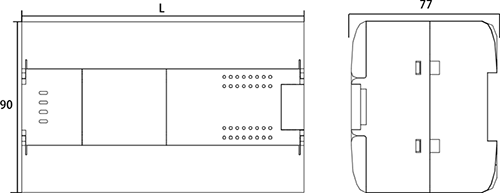

ขนาดผลิตภัณฑ์ (หน่วย: มม.)
| |
|
Parameter
| Item | Power Specifications | |||||
| XE-16RA | XE-24RA | XE-32RA | XE-40RA | XE-60RA | ||
| Power consumption | 10W | 12W | 12W | 113W | 14W | |
| Working voltage | Minimum value | 100VAC | ||||
| Middle value | 220VAC | |||||
| Maximum value | 240VAC | |||||
| Limit input voltage | AC 85V~AC100V, AC 240V~AC264V | |||||
| Allow instantaneous power outage time | For transient power outages below 5ms, the operation will continue | |||||
| Power fuse | 60V 2A | |||||
| Impulse current | 12A, 0.5ms below/28.8V DC | |||||
| DC24V given power | 300mA below | |||||
| DC5V build-in power | 800mA below | |||||
| Item | Power Specifications | |||||
| XE-16RA | XE-24RA | XE-32RA | XE-40RA | XE-60RA | ||
| Input number | 8 | 14 | 16 | 24 | 36 | |
| High-speed counter | single phase 200KHz [3 pc]; AB phase 100KHz [3 pc] | |||||
| Input type | PNP/NPN | |||||
| Input signal voltage | DC source type: DC20.4V~28.8V | |||||
| Input impedance | X0-X5 | 3.3K | ||||
| X6-X7 | 5.6K | 3.3K | ||||
| X10 above | - | 5.6K | ||||
| On input inductance current | X0-X5 | 5mA above | ||||
| X6-X7 | 4mA | 5mA above | ||||
| X10 above | - | 4 mA above | ||||
| OFF Input inductance current | 1mA above | |||||
| Input response time | ＜4.5ms | |||||
| Input signal form | No voltage contact input | |||||
| Sink input: NPN open-collector transistor | ||||||
| Source input: PNP open-collector transistor | ||||||
| Input loop isolation | Optocoupler isolation | |||||
| Display of input actions | The LED on the panel lights up when the optocoupler is driven | |||||
| Item | Power Specifications | ||||
| XE-16RA | XE-24RA | XE-32RA | XE-40RA | XE-60RA | |
| Output number | 8 | 10 | 16 | 16 | 24 |
| Output type | Dry contact | ||||
| Rated voltage | 220VAC | ||||
| Voltage range | 5~30VDC 5~250VAC | ||||
| Surge current (Max) | 5A 4s 10% Duty cycle | ||||
| Rated current per point (Max) | 2A | ||||
| Lamp Load [max] | 30W DC/200W AC | ||||
| Response time (24V,2K load) | 10ms | ||||
| on-resistance [connect point] | 0.22 (Max when new) | ||||
| Pulse frequency [Max] | 1HZ | ||||
| Mechanical life cycle | 10000000 (No load) | ||||
| Contact life | 100000(Rated load) | ||||
| shield | 500m (Normal output) | ||||
| un-shield | 150m (Normal output) | ||||
Software component resources
| Name | Content | Soft component type | Content |
| X | 256 point | Bit element | X0~X377 |
| Y | 256 point | Bit element | Y0~Y377 |
| M | 7680 point | Bit element | M0~M7679 |
| SM | 512 point | Bit element | SM8000~SM8511 |
| S | 4096 point | Bit element | S0~S4095 |
| V | 8 point | Word element | V0~V7 |
| Z | 8 point | Word element | Z0~Z7 |
| T | 512 point | Word element | T0~T511 |
| C | 200 point | 16 bit word element | C0~C199 |
| C(32 bit) | 56 point | 32-bit word element | C200~C255 |
| D | 8000 point | Word element | D0~D7999 |
| SD | 512 point | Word element | SD8000~SD8511 |
| R | 32768 point | Word element | R0~R32767 |
| Input interrupt | 8 point | | I00*~I07* |
| Timer interrupt | 3 point | | I6**~I8** |
| Counter interrupt | 6 point | | I010~I060 |
| Master control with nesting | 8 point | | N0~N7 |
| Pointer P | 4096 point | | P0~P4095 |
| Constant K | | | 16-bit range: -32768~ 32767 |
| | | 32 bit rang | |
| | | -2147483648~ 2147483647 | |
| Constant H | | | 16-bit range: 0~FFFF |
| | | 32 bit range: 0~FFFFFFFF | |
| Real number(E) | | | -3.40×10-38~ -1.17×10-38 , 1.17x10-38~3.40×1038 |
| Character string | | | A half-corner character framed by " " , with a maximum of 32 characters |
High-speed counter
| Input Distribution | Single phase single counter | AB Phase counter | AB Phase counter | |||||||||||||
| C235 | C236 | C237 | C238 | C239 | C240 | C243 | C244 | C246 | C247 | C248 | C249 | C251 | C252 | C253 | C254 | |
| X0 | U/D | | | | | | U/D | | U | | | U | A | A | | |
| X1 | | U/D | | | | | R | | D | | | D | B | B | | |
| X2 | | | U/D | | | | | U/D | | U | | R | R | | A | |
| X3 | | | | U/D | | | | R | | D | | S | | | B | |
| X4 | | | | | U/D | | | S | | | U | | | | | A |
| X5 | | | | | | U/D | | | | | D | | | | | B |
