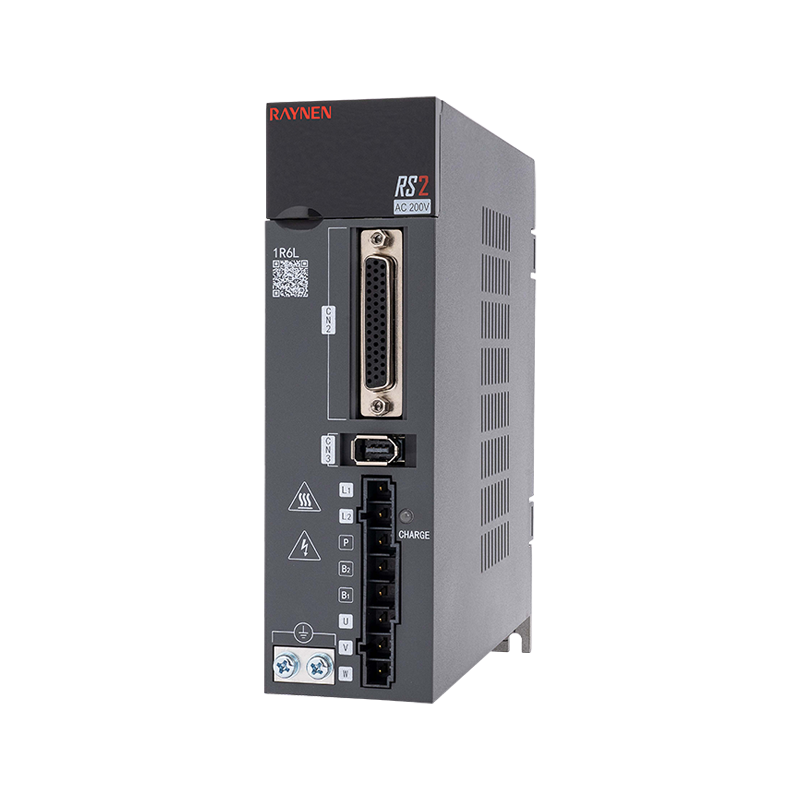

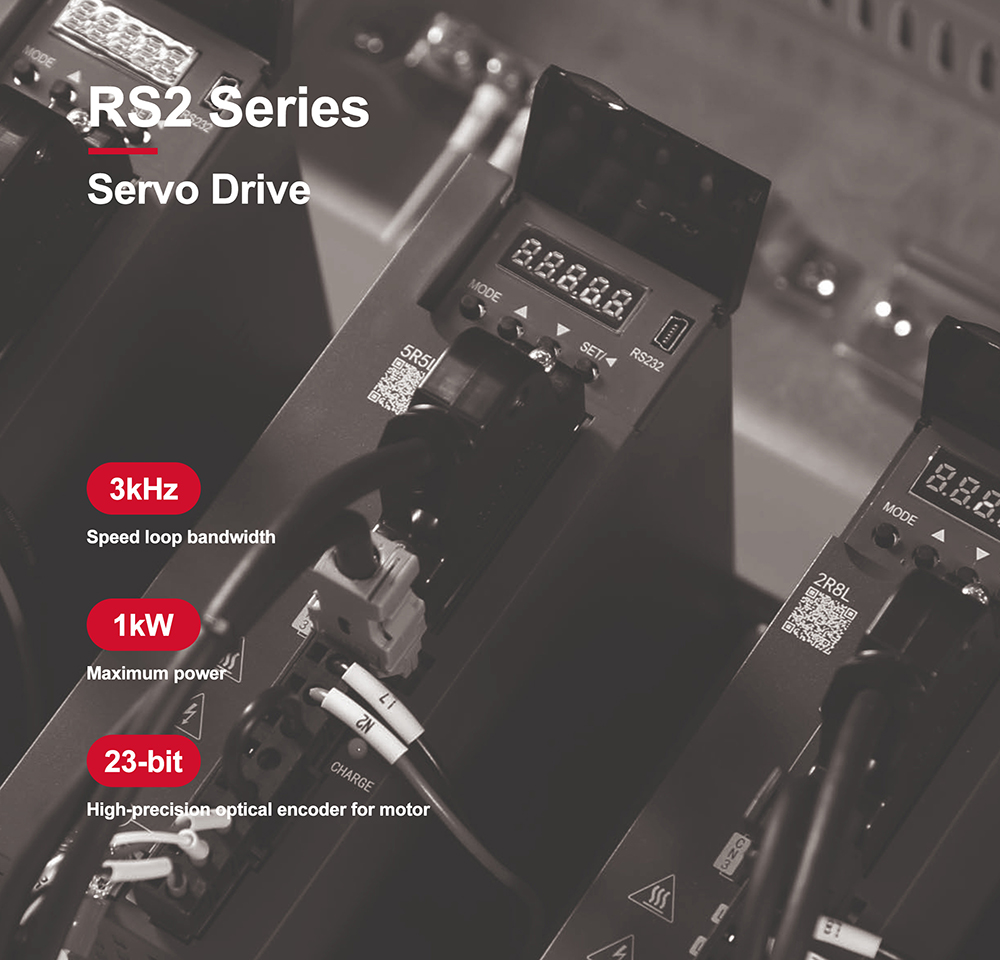

สรุปผลิตภัณฑ์

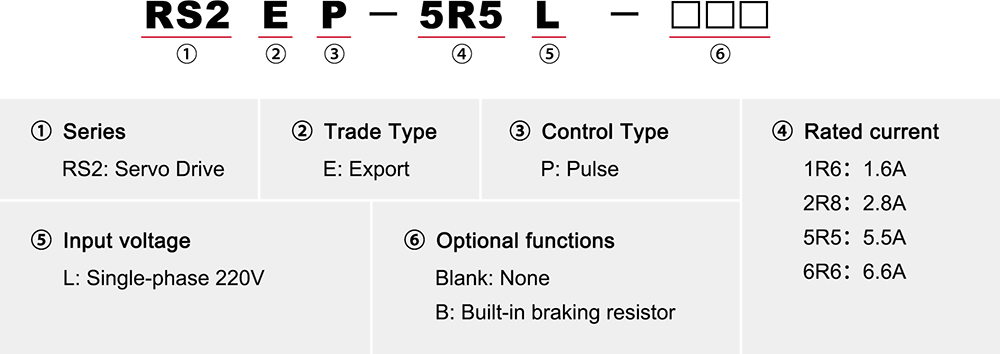

ศัพท์เฉพาะรุ่น
Port Definition
| | | ||
| Size A | Size B | ||
| No. | Name | No. | Name |
| 1 | - | 1 | - |
| 2 | Mini USB | 2 | Mini USB |
| 3 | CN2 | 3 | CN2 |
| 4 | CN3 | 4 | CN3 |
| 5 | L1、L2 | 5 | L1、L2 |
| 6 | Brake | 6 | Brake |
| 7 | U、V、W | 7 | U、V、W |
| 8 | Ground screw | 8 | Ground screw |
| 9 | CHARGE | 9 | CHARGE |
| 10 | CN4/CN5 | 10 | CN4/CN5 |
| Description: ① -: Seven-segment digital display ②mini USB: RS232 interface, connected to PC ③CN2: Output/input signal connector, connected to programmable controller (PLC) or control I/O ④CN3: Encoder interface, connected to the encoder on the servo motor ⑤L1, L2: Main circuit power supply, connected to single-phase power supply (200~240VAC, 50/60Hz power supply) ⑥Brake: Use external brake resistor ⑦U, V, W: Servo drive output, connected to motor power connector (U, V, W) ⑧Ground screw: Connect to power ground and motor ground ⑨CHARGE: Power indicator light ⑩CN4/CN5: 485 communication port | |||
Electrical specifications
| Single-phase 220V drive electrical specifications | |||||
| Item | Size A | Size B | |||
| Model | 1R6L | 2R8L | 5R5L | 6R6L | |
| Power supply capacity [kVA] | 0.5 | 1 | 1.7 | 2 | |
| Continuous output current [Arms] | 1.6 | 2.8 | 5.5 | 6.6 | |
| Instantaneous maximum output current [Arms] | 5.9 | 9.3 | 16.9 | 17 | |
| Main circuit | Continuous input current [Arms] | 2.4 | 5 | 8.7 | 11 |
| Main circuit power supply | Single phase 200~240VAC, -15%~ 10%, 50/60Hz | ||||
| Control loop | Control circuit power supply | Busbar power supply, shared power supply input and rectification | |||
| Power loss | Main circuit power loss [W] | 30.5 | 41 | 60.8 | 66.2 |
| Control circuit power loss [W] | |||||
| Braking resistor | Brake resistor function | Optional | |||
| Resistance value [Ω] | 50 | 50 | 50 | 50 | |
| Capacity [W] | 30 | 30 | 50 | 50 | |
| External minimum allowable resistance value [Ω] | 50 | 45 | 40 | 40 | |
| Cooling method | Natural cooling | Air Cooling | |||
| Overvoltage level | OVC III | ||||
Product size
| Size A | |||||||||||||||||
| |
| ||||||||||||||||
| Size B | |||||||||||||||||
| |
| ||||||||||||||||
Wiring Diagram
Note: The figure shows the wiring diagram of the RS2 series Single phase 220V Size A/B. For wiring diagrams of other models, please contact customer service.
